3years Warranty LiFePO4 LED High Bay Lgiht Explosion Proof Light 15W 3h 20W 2h 30W 1.5h Emergency Powerpack Ballast Kit Driver for Factory Warehouse
self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge
protection and short circuit protection
working environment: temp.: 0 to 60ºC
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty
| Input voltage | 100-277 Vac 50/60Hz |
| Input current | 100mA max |
| Charging power | 5.0W Max |
| Power factor | >0.5 |
| Charging current | 0-350mA Max. |
| Charging time | ≥24Hours |
| Emergency output Voltage | DC100-260V,DC300V Max |
| Emergency output Current | 58-150mA/ 75-200mA/115-300mA |
| Emergency power | 15W-3H/20W-2H/30W-1.5H |
| Battery capacity | LiFeP04/32700/6000mAh-9.6V |
| Case temperature | tc 60ºC Max |

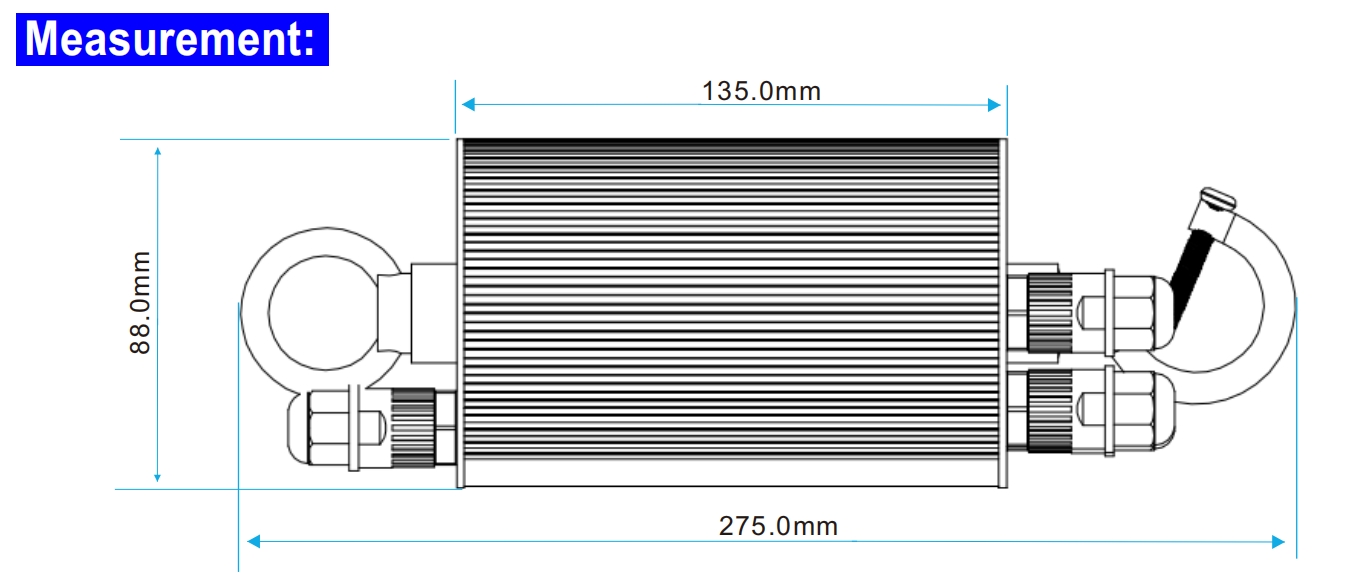

Dimension:
LED INDICATOR
Green breathing pattern:charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second :Load failure during emergency mode,
open circuit/short circuit
Green flashing: Emergency status one per second
Remote contorl: 1:0S<Key ON ≤1S,Enter a simulated state of emergency,the green indicator blinks
once every second
2:0S<Key OFF ≤1S,In simulated emergency situations, return to the normal charging state
3:0S<Key OFF ≤1S,In the emergency state, the emergency state is turned off Sele-test: when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.
Installation and Notifications: 1:If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours.
Please use the original emergency battery provided 2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3:Should be stored in a cool, dry environment.
4:After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently
